Description
Mechbadgers 800kg compact dumper range is available in petrol, diesel or electric power with a standard or a high tip (1350mm) format.
The MECHBADGER tracked dumper can be used on any surface with extreme precision thanks to its compact size and ergonomic controls. It excels in tight spaces thanks to its agility and precision. Designed and developed entirely in ITALY.
Contact us for a quote on high tip, electric or diesel.
Standard Equipment
- Hydrostatic transmission tracked undercarriage.
- Rubber tracks made of a single-piece structure with a steel wire core and treated steel inserts.
- Internal combustion engine, air-cooled; manual recoil starter.
- Manually operated hydrostatic transmission with triple gear pump and fixed-displacement orbital motors. Steering via track rotation.
- Cushioned and ergonomic operator platform
Maintenance
- You can save valuable time during maintenance, resulting in cost savings. Thanks to optimal and quick access to the hydraulics or engine, the machine can get back to work immediately.
- Optimal service access to safely perform daily checkup procedures
- Quick access to maintenance points
Hydrostatic Traction
- Quick and easy start-up: Thanks to the hydrostatic drive system, frequent gear changes are eliminated, allowing the user to focus entirely on their work. Ideal for rental companies or if the operator is frequently replaced.
- Pilot-controlled, hydraulically actuated forward and reverse lever for precision operation
- The hydraulically activated traction system and the working hydraulics can be activated independently
- Reduced maintenance and service costs thanks to the low-wear drive system

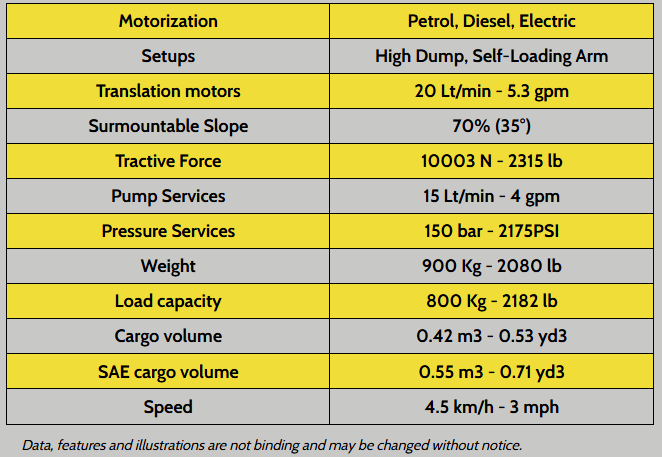

| Motorization | Petrol, Diesel, Electric |
|---|---|
| Setups | High Dump, Self-Loading Arm |
| Translation motors | 20 Lt/min – 5.3 gpm |
| Surmountable Slope | 70% (35°) |
| Tractive Force | 10003 N – 2315 lb |
| Pump Services | 15 Lt/min – 4 gpm |
| Pressure Services | 150 bar – 2175PSI |
| Weight | 900 Kg – 2080 lb |
| Load capacity | 800 Kg – 1764 lb |
| Cargo volume | 0.42 m3 – 0.53 yd3 |
| SAE cargo volume | 0.55 m3 – 0.71 yd3 |
| Speed | 4.5 km/h – 3 mph |
