Description

THE DRAGON LIFTER RANGE

Whether you’re moving logs, bags of sand or pallets of slabs, the versatile and compact Dragon Lifters make transporting materials around site quicker, easier and safer.

The LF1000 can transport up to 1,000Kgs.

Please note; the LF1500 has just been released, with a 1.5t capacity. Contact us for more information.

BUILT-IN SAFETY FEATURES

Both machines have a front stability foot, which doubles-up as a load stabiliser when tracking. They also both have a raised platform for the operator to stand on to ensure optimum operating visibility.

FLEXIBLE POWER OPTIONS

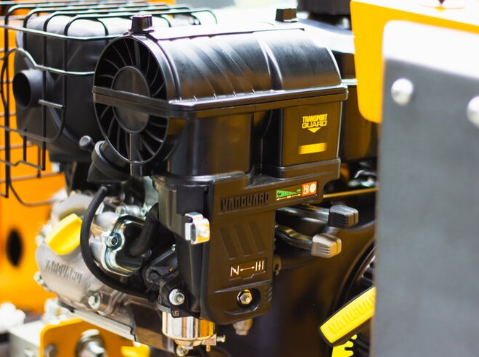

The Dragon Lifters are available with the Vanguard 400, 14HP petrol engine from Briggs & Stratton or the Hatz 1B50 Diesel engine, they are also available as a Hybrid machine.

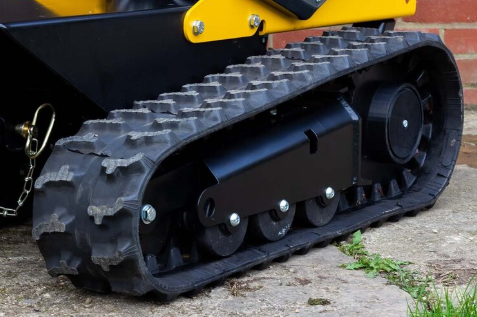

MOBILE AND COMPACT

All terrain tracks allow the Dragon Lifters to be used in all conditions on any building site or home based project. For ease of transport both machines weigh under 630Kgs, and will fit in most trailers or vans.

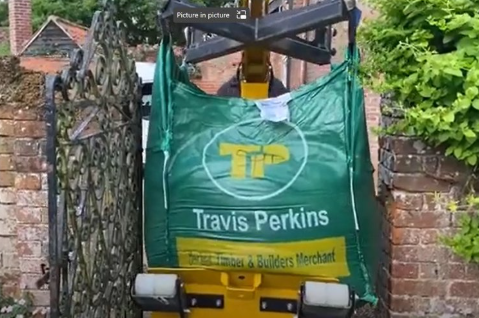

NARROW ACCESS

The LF1000 at just 840mm wide is perfect for jobs where access is narrow or restricted.

INTERCHANGABLE

The lifting arm can quickly and easily have additional attachments added, such as a log grab or post hole borer etc. – with new attachments coming soon.

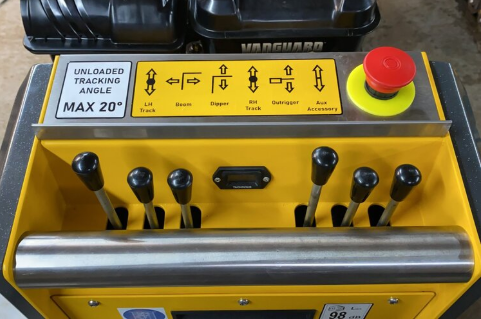

SIMPLE CONTROLS

Regardless of which attachment is being used, the simple, universal and robust controls make the machine even easier to master.

Attachments

A variety of attachments are available including;

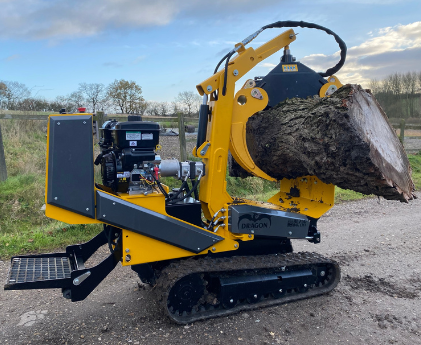

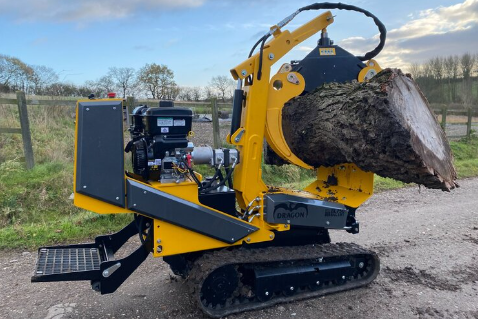

Log Rest and Log Grab

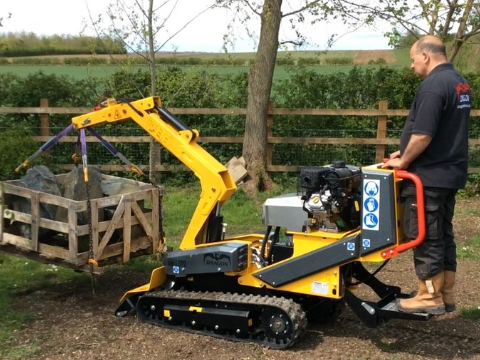

Pallet bars and Straps

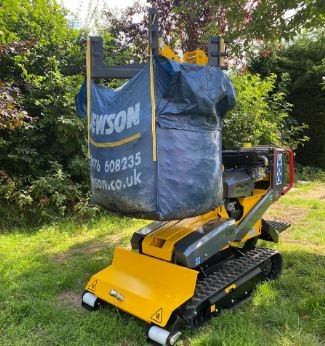

Bag Lifter

Dozer Blade

Specification

Width                   840mm
Length                         2000mm
Height                          1,690mm
Weight                         715Kgs
Max. lift weight 1,000Kgs
Engine Power             Petrol 10kw or Diesel 9kw
Start                            Electric and Pull
Fuel                             Petrol – Diesel – Hybrid

Contact us for a quote – for more information visit https://www.dragon-equipment.co.uk/lf750-lf1000-lifter
