Description
Tackle your toughest crushing projects with the Dragon Equipment CR450 Diesel Crusher. This robust and reliable machine is designed for heavy-duty applications, delivering exceptional performance in demolition, recycling, and aggregate production.
Heavy-Duty Crushing Capacity
The CR450 Crusher can power through even the hardest of materials at a higher speed for a sustained period, dramatically increasing the output, making it ideal for processing a variety of materials, including concrete, brick, stone, and rubble. Combine that with the large 33 litre fuel tank, and the machine can keep crushing in excess of twelve hours.
Boost Operator Efficiency
Featuring a 460mm x 205mm mouth aperture, the CR450 Crusher’s Hardox jaw is the largest in the range to date. Its funnel is perfectly designed to be loaded by a mini excavator, helping operators to handle larger jobs quickly and efficiently, increasing productivity.
Key Features and Benefits
Powerful Kubota Diesel Engine
Tracked Mobility
High Crushing Capacity
Easy Maintenance
Ideal Applications
Demolition Projects
Concrete and Rubble Recycling
Aggregate Production
Construction Sites Waste Recycling
Specification
| Width | 970mm |
| Length | 3,235 (for crushing) 2,515mm (for transport) |
| Height | 1,396mm (for crushing) 1,880mm (for transport) |
| Weight | 1,450Kg |
| Mouth | 460mm x 205mm |
| Engine Power | Diesel 14.9Kw (19HP) |
| Feed Height | 1,396mm (1,780mm max, with Greedy Board |
| Start | Electric |
| Min. Discharge Height | 1,035mm |
| Fuel | 33L Diesel Tank |
| Remote Control | Optional |
Hassle-free hires
Includes anti-stall and the auto reverse features for trouble-free hires. Plus, with a total weight of under 1,450Kgs it can be easily loaded onto a trailer with an excavator to minimise transportation cost. Particularly useful for those jobs where the machines are used in partnership to maximise the daily work rate.
The CR450 is powered by a high-performance Kubota D722 19HP diesel engine, providing the strength and efficiency needed for demanding crushing tasks. This engine offers fuel efficiency, low emissions, and durability. Experience consistent power and reliable operation, even in challenging conditions.
The 970mm width remains compact enough to give the machine a real advantage on tough-to-reach or more demanding sites.
The easy-to-use instant jaw adjustment alters the crush size from 3-55mm to suit the job at hand.

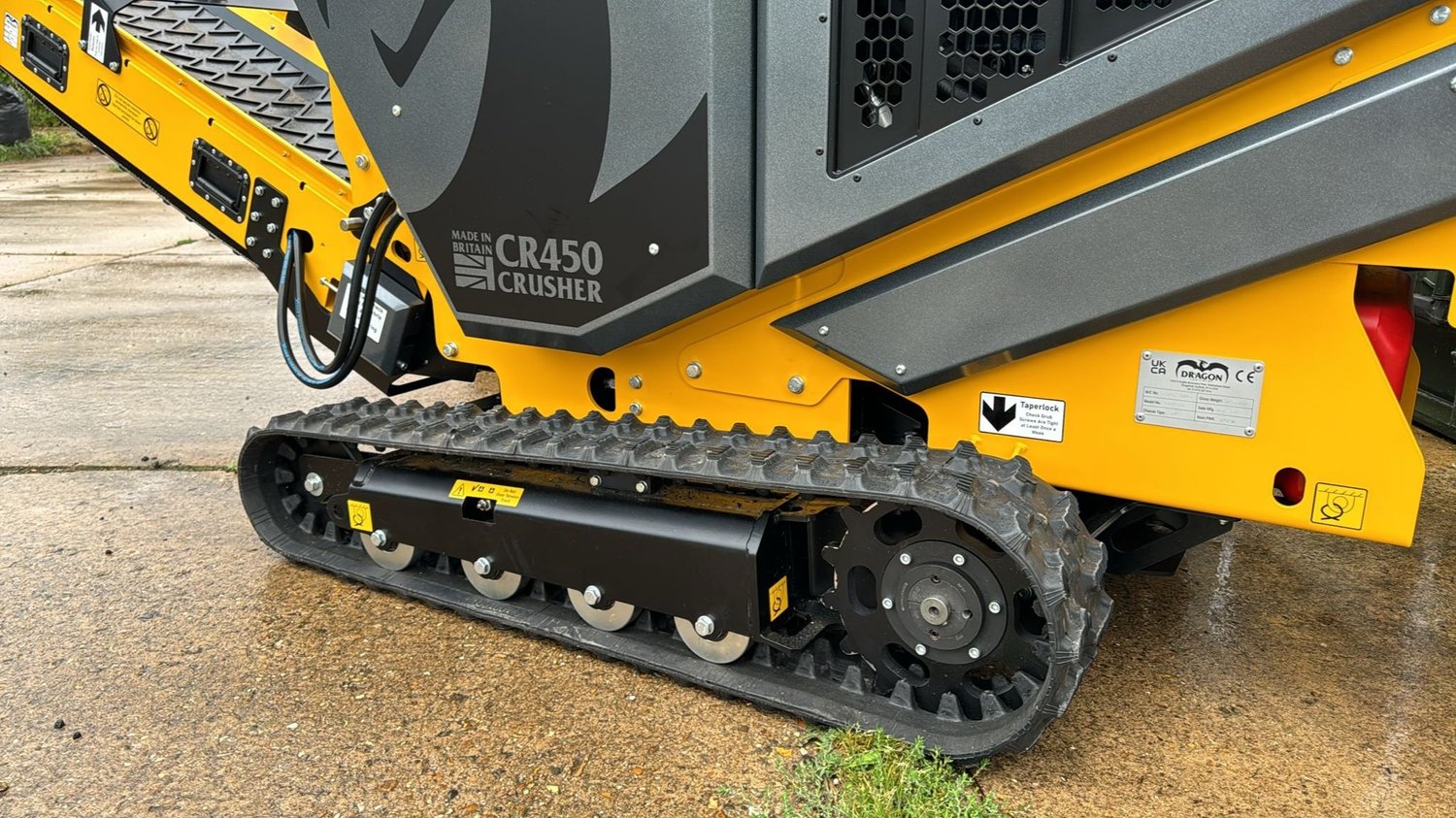

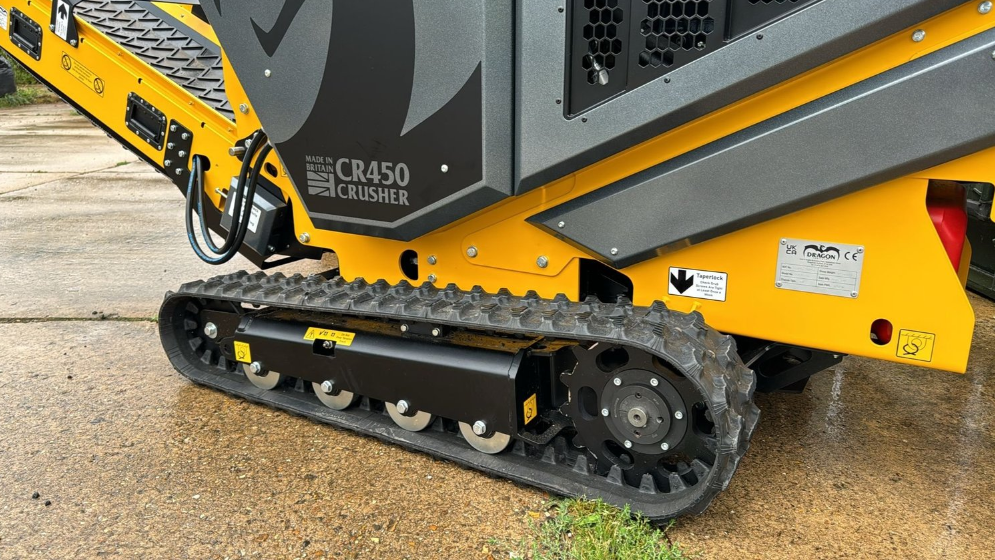

Tracked Mobility for Any Terrain
Equipped with all-terrain tracks, the CR450 Crusher offers excellent manoeuvrability and stability on any terrain. Easily navigate rough job sites, confined spaces, and challenging landscapes. The tracked design minimises ground disturbance and ensures optimal traction, allowing you to position the crusher exactly where you need it.
Custom-built fold-up conveyor
Dragon-designed fold-up conveyor for ease of storage and transportation.
Optional greedy board
Optional greedy board to make loading large loads more efficient and easier. Request to add this to your quote.
For more information visit https://www.dragon-equipment.co.uk/cr450-crusher
